JFE Super Core

Electrical steel sheets for high-frequency application

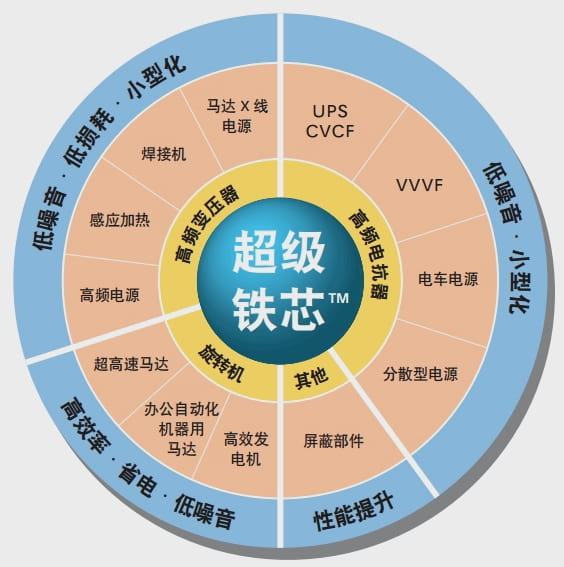

Super Core Applications

10JNEX900 10JNHF600 20JNEH1200 JFE川崎硅钢 超级铁芯 JFE Super Core






JNEX-Core

Reduced noise and low core loss for high-frequency magnetic components.
高频机器的低噪音、低铁损!





JNHF-Core

Further core loss reduction in high frequency ranges beyond 5 kHz.
在超过5KHz的高频领域实现更低损耗!!






The low core loss characteristics at high-frequency of Super Core allow it to be effectively used for a wide range of transformers, driven from several hundred Hz to several tens of kHz.
Super Core allow the transformer to generate less heat, and provide higher design induction than conventional silicon steel sheets, enabling transformer size to be reduced. This then reduces the quantities of other required transformer materials, such as the copper wire, leading to overall cost reductions.

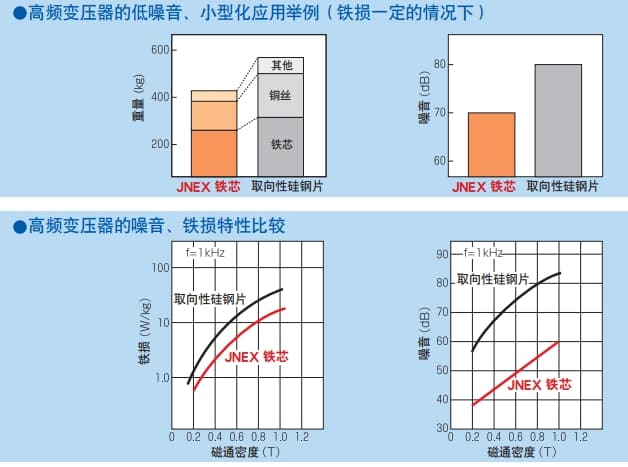

By taking full advantage of the low magnetostriction characteristics of JNEX Core, it is also possible to reduce transformer noise dramatically.

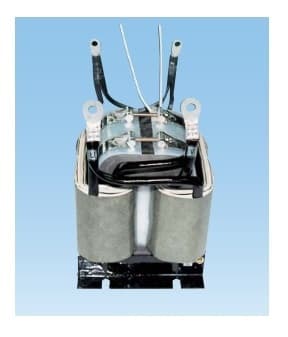

变压器
充分发挥超级铁芯的高频低铁损特性,可广泛应用于从数百赫兹到数万赫兹的变压器。
使用超级铁芯,可以实现变压器的低发热,所以相比以往的硅钢片,可以提高磁通密度的设计值,实现变压器的小型化。此外,还可减少铜线等变压器用材,具有综合优势。
另外,如果充分发挥JNEX铁芯的低磁致伸缩特性,还可同时实现变压器的低噪音。

10JNEX900 10JNHF600 20JNEH1200 JFE川崎硅钢 超级铁芯 JFE Super Core

10JNEX900 10JNHF600 20JNEH1200 JFE川崎硅钢 超级铁芯 JFE Super Core

10JNEX900 10JNHF600 20JNEH1200 JFE川崎硅钢 超级铁芯 JFE Super Core

10JNEX900 10JNHF600 20JNEH1200 JFE川崎硅钢 超级铁芯 JFE Super Core

更多 技术参数、铁芯定制,请联系客服。

日本JFE川崎硅钢材料,现货有很多牌号,
比如: 10JNEX900 / 10JNHF600 / 15JNSF950 / 20JNEH1200 / 20JNEH1500 ,等等,可以分条分片交货。
更多硅钢视频和图片,请咨询客服,谢谢。
欢迎来电索取样品试用。
